RCI Fuel Purifier Systems

The RCI Technologies Fuel Purifier is designed based on two well known fuel separation principles, centrifugal and coalescence. With these two principles, water and other contaminants can be separated from the fuel, thus eliminating fuel filter clogging and frequent replacements.

The RCI Fuel Purifier cleans the fuel via a three-stage purification process.

Stage 1: As the fuel enters the fuel purifier, the velocity slows down considerably, allowing any free water droplets and other contaminants to maintain their mass and not emulsify with the fuel. The contaminants will accumulate and remain at the bottom of the fuel purifier until purged.

Stage 2: The fuel migrates through three perforated baffle plates to stop any particulates and attract water droplets by way of coalescence.

Stage 3: The fuel passes through the coalescence medium, which coalesce any small water droplets and particulates out of the fuel system.



FP 50 Fuel Purifier

fp50 new

The FP 50 is designed for small to midsize marine, automotive and construction equipment.

Applications: marine, sport, automotive, construction equipment etc
Flow rate: 1.9 litres per minute
In/Out Couplings: 3/8” NPT
Dimensions: 76mm (w) x 204.2mm (h)
Weight: 4 lbs

FP 700 Fuel Purifier

The FP 700 is designed for heavy duty powered equipment

Applications: On/Off road heavy duty equipment, marine equipment, generators
Flow rate: 26.5 litres per minute
In/Out Couplings: 3/4” NPT
Dimensions: 114.3mm (w) x 406.4mm (h)
Weight: 11 lbs

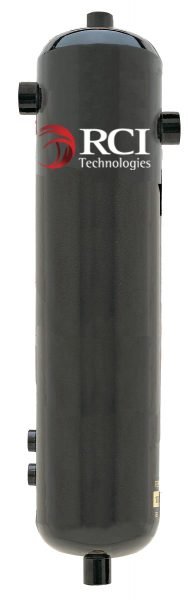

FP 1500 Fuel Purifier

The FP 1500 is designed for diesel locomotives, diesel fuel pumping stations, fuel docks, and heavy duty engines

Applications: large pumping stations, heavy duty engines, fuel docks
Flow rate: 340.7 litres per minute
In/Out Couplings: 2” NPT
Dimensions: 177.8mm (w) x 406.4mm (h)
Weight: 41 lbs

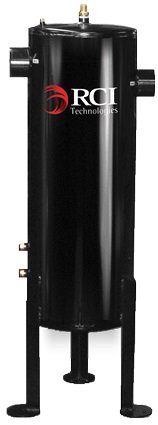

FP 4000 Fuel Purifier

The FP 4000 is designed for diesel locomotives, diesel fuel pumping stations, fuel docks, and heavy duty engines

Applications: large pumping stations, fuel docks
Flow rate: 1514 litres per minute
In/Out Couplings: 4” NPT
Dimensions: 381mm (w) x 1943.1mm (h)
Weight: 285 lbs

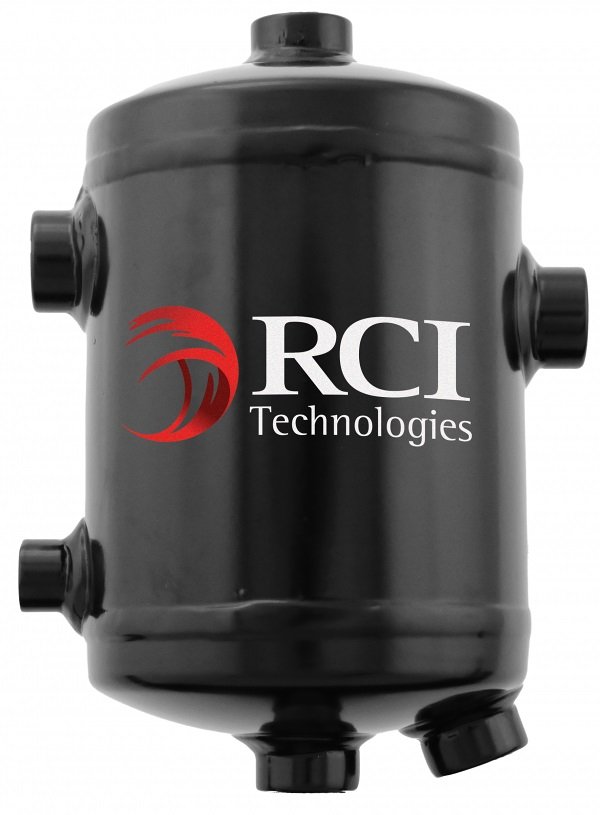

FP 80 Fuel Purifier

fp80 new

The FP 80 is designed for small diesel trucks, portable generator and small engine.

Applications: small engines, trucks, generators, refrigeration, units for trailers
Flow rate: 3.8 litres per minute
In/Out Couplings: 1/2” NPT
Dimensions: 114.3mm (w) x 203.2mm (h)
Weight: 6 lbs

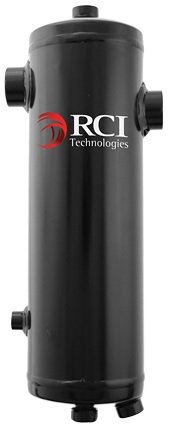

FP 800 Fuel Purifier

The FP 800 is designed for stationary pumps and equipment.

Applications: stationary pumps, generators, marine engines
Flow rate: 56.8 litres per minute
In/Out Couplings: 1” NPT
Dimensions: 114.3mm (w) x 406.4mm (h)
Weight: 11 lbs

FP 2000 Fuel Purifier

The FP 2000 is designed for diesel locomotives, diesel fuel pumping stations, fuel docks, and heavy duty engines

Applications: large pumping stations, fuel docks
Flow rate: 378.5 litres per minute
In/Out Couplings: 2” NPT
Dimensions: 381mm (w) x 1079.5mm (h)
Weight: 124lbs

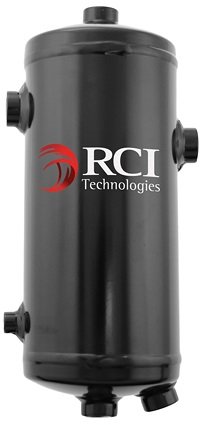

FP 400 Fuel Purifier

The FP 400 is designed for diesel trucks, generators and small engines

Applications: trucks, generators, small engines, refrigeration, units for trailers, buses, machineries
Flow rate: 7.6 litres per minute
In/Out Couplings: ½” NPT
Dimensions: 114.3mm (w) x 304.8mm (h)
Weight: 9 lbs

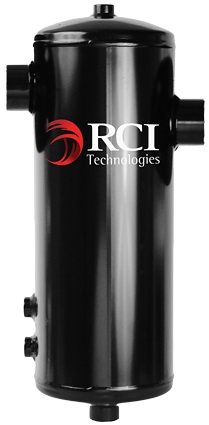

FP 1000 Fuel Purifier

The FP 1000 is designed for diesel locomotives, diesel fuel pumping stations, fuel docks, and heavy duty engines

Applications: diesel locomotives, diesel pumping stations, fuel docks, marine and heavy duty engines
Flow rate: 151.4 litres per minute
In/Out Couplings: 1” NPT
Dimensions: 177.8mm (w) x 520.7mm (h)
Weight: 22 lbs

FP 3000 Fuel Purifier

fp3000

The FP 3000 is designed for aerospace and high capacity fuel pumping operations.

Applications: Aircraft fueling, fuel docks and large pumping stations
Flow rate: 757.1 litres per minute
In/Out Couplings: 3” NPT
Dimensions: 381mm (w) x 1435mm (h)
Weight: 139lbs
